Lead guitar is a critical track in any rock instrumental music; particularly if you follow the likes of Joe Satriani, Steve Vai, Eric Johnson, Paul Gilbert, Yngwie Malmsteen, etc. It is a common trend for home studio musicians who are recording their own lead guitar performance. And there has been an increasing trend of rock instrumental music because of their demands in TV and film music licensing.
This simple post will contain some of my personal tips when mixing a lead guitar. Let’s divide these into 4 categories:
a.) Mixing a electric lead guitar using distortion tone – this is very common in the early 70’s to 90’s rock. Most rock instrumental music are using this type of tone.
b.) Mixing a solo guitar using a clean tone – in some highly specialized solos such as in the jazz rock instrumental, the guitarist wil be using a clean tone.
c.) Mixing a guitar when the solo is done using a nylon acoustic guitar – classical rock instrumental musicians such as Yngwie Malmsteen commonly uses a nylon acoustic guitar to accomplish some of its finest guitar solos.
d.) A lead guitar mixing using steel strings – some rock music instrumental solos are using these types of strings.
Some tips
1.) Think of a guitar solo as a substitute of a vocalist or lead singer. In a band, a lead singer is on the center of the stage. It’s why the vocals will be panned in the center of the stereo field.
The same concept can be applied to rock guitar in the instrumental genre.. There is no lead singer but only the guitarist as the lead performer on stage. In this case the guitar solo is simply panned in the center of the mix. (0 setting or 0% in your recording software).
Applicable categories: all
2.) Elusive guitar distortion tone is often accomplished using the guitarist highly favorite guitar amplifiers. In this case the recording will be using microphones instead of direct inputs. Try to check for the ambiance and reverb of the recording. If the recording is very “spacey”, then there is no need to apply for a reverb as one of the mixing effects.
Applicable categories: b
3.) A good reverb settings for a guitar is around 500ms to 2000ms. This will depend on the speed of the guitar solo. For a very fast guitar solo, a reverb setting of 500ms is nice to hear but still, it depends on the music.
strat guitar
Applicable categories: all
4.) The EQ for lead guitar is:
200Hz, -6dB (low shelf filter) – if there is an accompanying bass guitar and drums
NO EQ Settings needed in the mixing– if the guitar solo does not have accompanying bass guitar and drums.
In a guitar solo, there is no need to apply substantial EQ adjustment in the mixing session just to bring out the best tone on the guitar. Most guitarist will be using EQ as one of their pedal effects for this. Or even adjust the treble and bass settings on the amps or other pedals.
EQ guitar pedal
Applicable categories: all
5.) In most cases, guitar solo does not need much compression to bring out the most of the guitar sound dynamics which are very important to any guitar solo.
Applicable categories: all
6.) Steel strings are often troubling in the 800Hz to 1000Hz frequency range. You can try applying this EQ settings:
800Hz Q= 1.4 -6dB cut.
Applicable categories: b and d
Take note that this may also applicable to clean tone electric guitars.
Final tip: Experimentation is the key. The above suggestions are based on my personal experience in mixing. Start with the above settings and gradually improve further to fit your projects.
Compressing Lead Guitar in the Mix
I received a letter from one of the blog readers asking me for tips on how to compress lead guitar in the mix. I would like to share this to everyone in order for others to know.
————————————————
Hi Tony,
Thanks for contacting me. Compression techniques are actually an art, it depends on creativity and how you are going to set those settings in order to achieve the best sound you want. So that means, my settings in the blog are a little more of guide only.
To answer your question, lead guitar frequencies are often high so compression techniques should be: Lead guitar: Fast attack, Slow release
This is an opposite to bass guitar which is slow attack and fast release. The primary reason is that for bass are low frequencies which means that their period is long (Frequency = 1/Period), the higher the period , the lower will be the frequency, so to have the best compression effect we will wait until it near reaches its maximum amplitude in the wave then there we will start compression (start of attack).
To simplify, picture it as a wave:
Start of wave : amplitude =0
Middle of wave: (max) = 1
End of wave: back to zero since it is a cycle.
Slow attack is applying at the middle or towards the end of the wave, So it means that start of compression(called “attack) is high amplitude then we release it suddenly (release), the resulting sound is BIG.

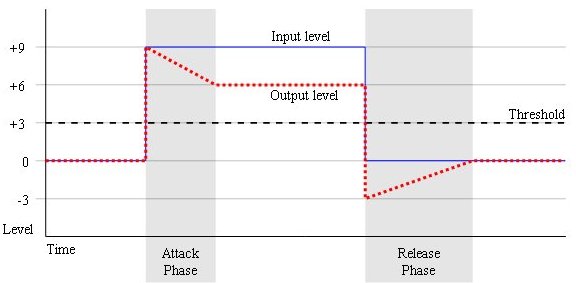

Here is a very good illustration of how compressor attack and release works.
compressor attack and release
Lead guitar is fast attack and slow release, so same concept applies but in the opposite. Since they have high frequencies, the period is small (milliseconds). In order to make it stronger, apply compression immediately and release it near the end. The primary reason is that the period is small and to have a stronger sound, longer period in the sound wave are to be applied with compression.
Again settings are for references only; you can start trying at my suggested settings here, General Audio Compression Tips.
Try to experiment….remember that if you set compression ratio at 1:1, it is no compression at all while 2:1 is that the compression factor is twice. The higher the compression ratio it tends to equalize all volumes in the sound wave, “over compression” is bad since you do not have silent areas anymore and all sound waves are now at the same level, resulting in unnatural sound recording.
You can read more about dynamic range compression to understand the science behind audio compression.
Additional Lead Guitar Compression Tips:
1.) When you are compressing, you are reducing the dynamic range of your guitar solo. This can be either be bad or good depending on the music. For example, some guitarist intentionally provide dynamics in their solo to add some realism and feel (e.g. blues guitar solos or in classical guitar music).
However, if you start compressing them you are now taking away some of precious dynamic range of the music. Hence, the guitar solo would now sound bland with reduced dynamics.
2.) Use your ears when compressing the guitar solo. I recommend to start tweaking the threshold first at 30% of the peak guitar solo amplitude then set the compression ratio at 4:1 with attack set at 1ms and release at 50ms.
If you want the dynamics to be reduced, lower down the threshold from 30% of peak amplitude to around 50% until it now sounds even. f there are “pumpy” sections in the guitar solo, you either have to increase the release time or lower the compression ratio until you get the perfect sound.
Thank you so much and Good luck.
Sincerely,
Emerson R. Maningo
From Tony:
———————–
Hi, I was reading your article with interest about compression setting.especially the guitar settings. I’ve bought a Behringer composer pro mdx2200 rack compressor.
I’m recording some lead guitar onto backing tracks. Would i be better treating the lead guitar the same as the vocal settings you have listed, or should i keep the settings you have for guitar?
I know nothing about compression hence the question. I’ve read that some say the ratio should be about 2/1 with a fast attack and slow release to keep the sound on a clean guitar transparent, and not squashed, but i don’t know.
Would appreciate your opinion on this. Also on the attack dial it reads from 1 to 150 ms and the release dial reads from 0.05 to 5 secs.
I know you may think this a silly question but could you tell me how this is read. Im reading it as, the attack 1 is fast and 150 is slow. And on the release 0.05 is fast and the 5 is slow.
It also has an expander gate with the threshold from off to +15 and ratio from 1 to 8 with a fast and slow release button. Could you
give me any advice regarding this. i know I’ve asked a lot of questions but i am a real novice at this. hope you don’t mind me asking. regards tony
