If you have your own netbook right now, you can transform it into a fully working home recording studio. This is what you need:
a.) Audio interface or small mixer – for accepting and conditioning input signals from your musical instruments.
b.) Recording software – there are free such as Audacity and there are also commercial ones like Cubase, Reaper or Adobe Audition. If you still do not have a recording software, feel free to install it first to your netbook. This tutorial will illustrate Audacity since its free and simple to use.

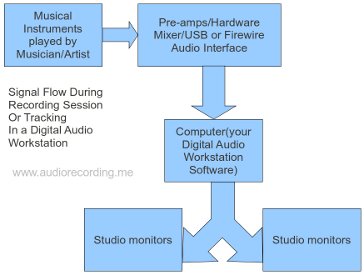

This tutorial will focus on using connecting a small mixer (example Behringer XENYX502) to your netbook and then use that in your music production projects. Using a USB audio interface is straightforward and easy because all you need is to plug it directly to your netbook USB inputs. But on a small audio mixer, it needs to be plugged to your Netbook microphone or line-inputs. Although appears simple, it can be complicated to beginners. Let’s create a small home recording studio using the signal flow path in recording such as this:
Connecting a Small Audio Mixer to Netbook
1.) Plug your netbook power adapter. It is highly recommended to plug the AC adapter to your netbook because any audio processing tasks is power intensive and will consume your battery power very quick. Power-on your netbook and boot into Windows 7 (if you are using a different OS, the steps are somewhat similar).
2.) Connect your mixer output to your netbook microphone/line-input. The mixer output is stereo and you need connnectors such as this(red and white connectors are for left and right signal of the stereo output):
And on the other end of this wiring connector is plugged to your netbook microphone/line-input such as this(red connector to your netbook mic input):
Do not yet plugged any musical instruments to your mixer.
3.) Now power-on your audio mixer.
Prepare the Recording Software
Now that your audio hardware mixer is ready to use, do the following test to prepare your audio signals for recording:
1.) Mute any speakers or studio monitors. Plug any musical instrument to your mixer line inputs. For example, in this tutorial a nylon guitar is used. Plug it to any available line input in your mixer, such as this (enclosed in yellow box):
In some netbooks particularly ASUS EeePC, the microphone and headphones function as one input. So you need to configure your Windows 7 built-in audio mixer to enable microphone/line inputs.
a.) Go to Start – Control Panel – Realtek HD Audio Manager – under “Analog” right click on gray circle (see screenshot):
2 Responses
I have not tried this but I think this is highly possible. This is my idea:
1.) Purchase a USB audio interface. Most netbooks do have USB ports so an external audio interface can be used.
2.) Install the USB audio interface drivers to your netbook.
3.) Connect as follows:
a.) Connect the audio interface to USB port.
b.) Connect your monitors or headphones to audio interface headphone output.
c.) Connect the musical instruments or microphone to preamp inputs audio interface.
4.) Configure your software to record from the device.
5.) Try to do some test record, you should be able to monitor the output while recording.
Of course one downside with this method is that it requires you to purchase an external USB audio interface. But this is only way I can think that would work.
In this case, you would not anymore need a mixer because the audio interface would handle all routing functions. I suggest to read the audio interface manual for details to make sure it is compatible with your netbook or software. Good luck
hello, just wondering. I have a net book that has a mic/headphone as one socket. If I was to use a 4/5 channel mixer, how would I hear what is coming out of the netbook as i record? As the output for headphones is being used for the input for the mixer? i know i can plug headphones into the mixer, but how would i hear my netbook? if i use a 3.5mm splitter, plug mixer in one and headphones in the other, would this still work? Hope to hear back. Thank you! Great tutorial as well.
