Notion3 Mixer Console Tutorial

This is a tutorial for musicians that are using Notion3 to notate and mix classical symphonies. One problem of most musicians notating music is that they do not know how to mix audio or make their mix sound great using their music notation software like Notion3.

The objective of doing this mix is to make your work realistically sounding as possible. As if it was being performed by real orchestra musicians inside the concert hall.

In Notion3, there is a mixer console feature that you can use to enhance the sound of your mix. This is usually found in the upper left, see screenshot below:

At the end of this tutorial, you will know how to mix a simple symphony orchestra and actually apply effects settings particularly reverb and panning. This tutorial assumes that you have completely notated your symphony or musical piece. Notating can take a lot of time and patience. This is usually done by music degree students or music professionals. In this tutorial, it will be using Mozart Symphony No.25 First movement in G Minor as an illustration.

How to mix symphony orchestra music in Notion3

If you click the Notion3 mixing console. You would immediately see all the instruments in the orchestra used in Symphony No.25 by Mozart. For example, Symphony#25 has one oboe, two horns, two violin section, one viola and one cello sections. To begin with, you need to concentrate on the most important settings which are the following:

a.) Reverb
b.) Panning

Reverb can add warmth and ambiance to the musical instruments. Most orchestra music are performed inside a concert hall which has high reverberation. As a beginner the most appropriate way to set a reverb is to apply it on the master output.

Feel free to click the “Reverb” button and then it will be highlighted. Set your reverb like as follows:

In the above setting, dry/wet is set to 20, room to 50, damping to 0 and 25 for pre-delay. Once you start becoming familiar with the mixer console; you can then apply individual reverb settings for each musical instrument. You can insert them on the track. To do this, click “Insert” below the instrument and then you can use any VST supported reverb.

Aside from reverb, you can insert any plugins possible with Notion3 and VST. For example, you might want to insert compressor, EQ, etc on each of the instruments. However the most tricky thing to do are the panning settings. By default, all musical pieces you created with Notion3 does not have any panning so they don’t sound good in stereo.

Also the panning feature in Notion3 can be a bit confusing to use for beginners. For example, this is a panning example setting that implies the instrument sound should cover the entire stereo field (shown by the gray white area region):

Another example below shows that the instrument sound should basically cover to the entire right region of the stereo field:

Or below is a much more specific panning example; putting the sound to concentrate midway to the far left and center of the stereo:

If you like to concentrate the instrument sounds in the center region, you can do it like this:

Now that you understand the basic principles of panning instruments in Notion mixer, let’s proceed exactly how to pan symphony orchestra instruments.

Panning Symphony Orchestra Instruments

OK, the first thing that you need to do is to understand how different instruments are located within the symphony orchestra. With this information, you can derive vital information on how you are going to panned each of them accurately in the stereo field.

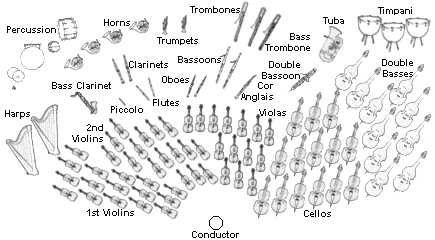

Start with looking at the screenshot below:

Photo credits: thinkquest.org

Its obvious that the violas are on the center, violin on the left-center region, cellos on the right, percussion on the back, etc. So how are you going to translate the above information to actual panning settings? See the final panning settings implemented below:

For the reason why the above settings was done, take a look at the symphony orchestra instruments layout shown before and use the Notion3 panning settings guide discussed earlier. For example, cello is placed on the entire right region of the orchestra, so it is also panned to occupy the entire right region of the stereo field. Also Oboe is placed on the center and it should also be panned on the center.

How to make it sound the instrument more up-front or back?

The easiest solution is to simply use the following rules on setting levels (volume) for each instrument:

1.) For instruments placed on front of the audience, it will have more volume due to the direct nature of sound reaching the audience ears.

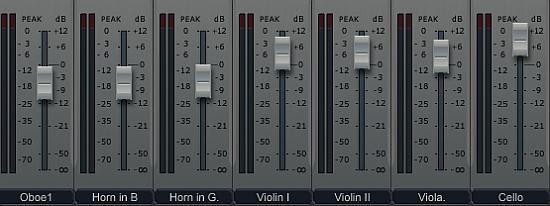

2.) For instruments placed on the back of the orchestra (e.g. oboe, horn, etc.), assign a lower volume levels. Below are the assigned volume level settings for each instrument Symphony #25:

As discussed, since Oboe and Horn are placed on the back of the orchestra, they should have lower volume levels set (-6dB in the above screenshot). While Viola, Violin and Cello should be made to sound louder since they are directly fronting the audience. Careful not to clip the master output(exceeding 0dB showing red), allow -3dB maximum to be safe. See a sample screenshot below for Notion3 master output level meters:

Listen to the 1 minute mix down of Symphony #25 by Mozart using Notion3 with the audio mixing settings:

If you want more information regarding this topic, you can read the tutorial on symphony orchestra panning and reverb settings. If you want to download Symphony #25 First movement sheet music, you can do it here.
